Nesouosé redukce
Kód produktu:
v-pk-pr-11141xxxxxx10
Nesouosé potrubní redukce, materiál 1.4301 ( AISI 304 ) - leštěno.
Parametry k výběru:
Popis
|
Materiál |
1.4301 ( AISI 304 ) - leštěno |
|
|
max. T |
||
|
Těsnění ( vše s atestem FDA ) |
EPDM – standard HNBR VMQ FPM PTFE |
200°C 110°C 100°C 140°C 260°C |
|
Tlak |
10 bar – standard 6 ÷ 8 bar – ovládací tlak |
|
|
Rozměry |
DN |
|
|
Povrch |
Ra 1,6 μm (0,8 μm) |
|
|

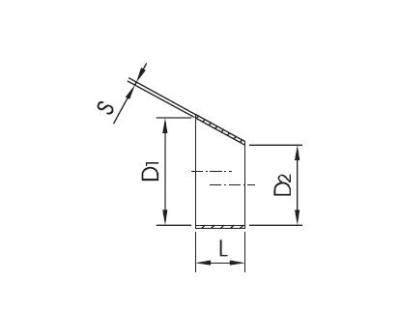

DN |
D1 |
D2 |
S |
L |
Kg |
|
15-10 |
16 |
10 |
1.5 |
16.5 |
0.01 |
|
20-10 |
20 |
10 |
1.5 |
27.5 |
0.02 |
|
20-15 |
20 |
16 |
1.5 |
11 |
0.01 |
|
25-10 |
26 |
10 |
1.5 |
44 |
0.01 |
|
25-15 |
26 |
16 |
1.5 |
27.5 |
0.02 |
|
25-20 |
26 |
20 |
1.5 |
16.5 |
0.03 |
|
32-15 |
32 |
16 |
1.5 |
44 |
0.03 |
|
32-20 |
32 |
20 |
1.5 |
33 |
0.03 |
|
32-25 |
32 |
26 |
1.5 |
16.5 |
0.04 |
|
40-15 |
38 |
16 |
1.5 |
60.5 |
0.05 |
|
40-20 |
38 |
20 |
1.5 |
49.5 |
0.04 |
|
40-25 |
38 |
26 |
1.5 |
33 |
0.05 |
|
40-32 |
38 |
32 |
1.5 |
16.5 |
0.07 |
|
50-25 |
50 |
26 |
1.5 |
66 |
0.08 |
|
50-32 |
50 |
32 |
1.5 |
49.5 |
0.11 |
|
50-40 |
50 |
38 |
1.5 |
33 |
0.07 |
|
65-40 |
66 |
38 |
2 |
77 |
0.17 |
|
65-50 |
66 |
50 |
2 |
44 |
0.11 |
|
80-50 |
81 |
50 |
2 |
85 |
0.21 |
|
80-65 |
81 |
66 |
2 |
41.2 |
0.14 |
|
100-50 |
100 |
50 |
2 |
137.5 |
0.80 |
|
100-65 |
100 |
66 |
2 |
93.5 |
0.34 |
|
100-80 |
100 |
81 |
2 |
52.5 |
0.20 |
|
125-80 |
125 |
81 |
2 |
121 |
0.38 |
|
125-100 |
125 |
100 |
2 |
68.5 |
0.28
|
